USB モデムは使用不可？

何が悪いか，把握する必要があると思います．

yokkatu による書き込み:

その後、しばらく使っての感想です、

１０５軒の得意先のうち、１３軒ほどは「ファックスのプロトコルエラー云々...」で、送信出来ません

また、それ以外の送り先にでも、送れる場合と送れない場合がまれにあるようです、

FAXのログと履歴がみれますので，これをみると何かわかるかもしれません．

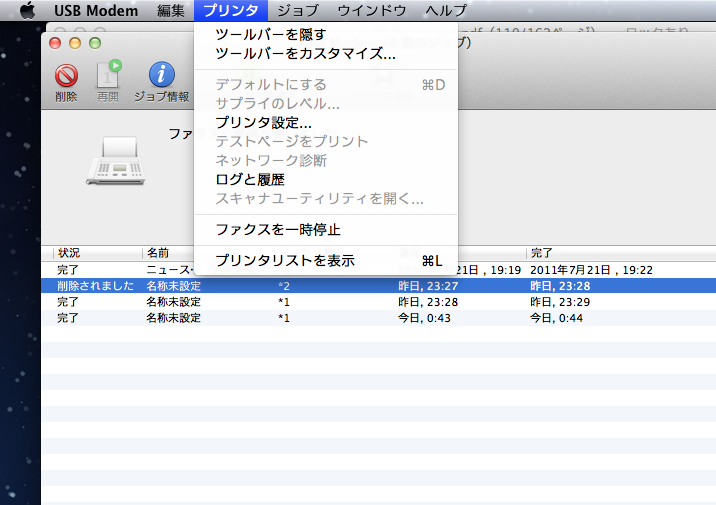

システム環境→プリントとスキャン→USB Modem →ファックスキューを開く

をやっていただくと，下のように，``ログと履歴''というのが選択できます．

そうすると，FAXが送れなかったときの，ログを，次のようにみることができます．

FAXが送れなかったときのログをみると，なにかわかるかもしれません．(以下のログは，

*2という電話番号あてに，FAXを送ったときのログです．*2は内線の電話の番号だと解釈してください．

以下は，自分の電話番号に電話して，わざと話し中にしたのでした．:-p）

D [05/Aug/2011:23:27:44 +0900] [Job 79] ファクスを準備中...

D [05/Aug/2011:23:27:44 +0900] [Job 79] Set job-printer-state-message to "ファクスを準備中...", current level=INFO

D [05/Aug/2011:23:27:44 +0900] [Job 79] `/private/var/spool/cups/d00079-001' has 1 pages.

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster - opened PPD file "/private/etc/cups/ppd/USB_Modem.ppd"...

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster: size->width = 595, size->length = 842, size->top = 825.16, size->bottom = 16.84, size->left = 16.84, size->right = 578.16

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster: PreferredRotation = 90

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster - languageLevel = 3, mediaBox.size.width = 595, mediaBox.size.height = 842

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster: band width = 1590, bytesPerRow = 1590, band height = 2200, height = 2200

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster: context width = 1590, height = 2200, bitsPerComponent = 8, bitsPerPixel = 8, bytesPerRow = 1590, bitmapInfo = 0, resolution = (204.000000, 196.000000)

D [05/Aug/2011:23:27:44 +0900] [Job 79] NOT using display list

D [05/Aug/2011:23:27:44 +0900] [Job 79] cgpdftoraster: bytes written for sheet 1 = 437800

D [05/Aug/2011:23:27:44 +0900] [Job 79] rastertotiff read page 1 (437800 bytes)

D [05/Aug/2011:23:27:44 +0900] [Job 79] STATE: -offline-report

D [05/Aug/2011:23:27:44 +0900] [Job 79] STATE: +connecting-to-device

D [05/Aug/2011:23:27:44 +0900] [Job 79] fax sending file /private/var/spool/cups/tmp/00b064e40c9fc to T*2

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[0] = efax

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[1] = -d/dev/cu.usbmodem24680241

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[2] = -vewincf

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[3] = -iZ

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[4] = -i

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[5] = E0&D2S7=120M1X4

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[6] = -oh

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[7] = -t

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[8] = T*2

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[9] = /private/var/spool/cups/tmp/00b064e40c9fc

D [05/Aug/2011:23:27:44 +0900] [Job 79] Started /usr/bin/efax (PID 2827)

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax v 0.9a-001114 Copyright 1999 Ed Casas. Compiled Jun 13 2011 16:41:35

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: Fri Aug 5 23:27:37 2011 TIFF version 4.2 file (big-endian)

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 TIFF directory at 18316 with 16 tags, last image.

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 page 1 : /private/var/spool/cups/tmp/00b064e40c9fc + 8 : 1590x2200 @ 204x196 dpi TIFF/FAX

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 opened /dev/cu.usbmodem24680241

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 command "Q0V1"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 waiting 2.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "ATQ0V1"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 command "Z"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "ATZ"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 command "E0&D2S7=120M1X4"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "ATE0&D2S7=120M1X4"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 initializing modem

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 command "E0"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 command "I3"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "CX93001-EIS_V0.2002-V92"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:37 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "+FCLASS=?"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 response "0,1,1.0,8"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "+FCLASS=1"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 using CX93001-EIS_V0.2002-V92 in class 1

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "+FTM=?"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 response "3,24,48,72,73,74,96,97,98,121,122,145,146"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "+FAR=1"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 response "ERROR"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 dialing T*2

D [05/Aug/2011:23:27:44 +0900] [Job 79] *2 にダイヤル中...

D [05/Aug/2011:23:27:44 +0900] [Job 79] Set job-printer-state-message to "*2 にダイヤル中...", current level=INFO

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "DT*2"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 waiting 120.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 response "BUSY"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 Warning: number is busy

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 failed -> /private/var/spool/cups/tmp/00b064e40c9fc

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 command "Q0V1"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 waiting 2.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 command "H"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 waiting 5.0 s

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 response "OK"

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:44 done, returning 1 (number busy or modem in use)

D [05/Aug/2011:23:27:44 +0900] [Job 79] Set job-printer-state-message to "この電話番号は話し中でした。", current level=ERROR

D [05/Aug/2011:23:27:44 +0900] [Job 79] STATE: -connecting-to-device

D [05/Aug/2011:23:27:44 +0900] [Job 79] Backend returned status 1 (failed)

D [05/Aug/2011:23:27:44 +0900] [Job 79] Job held for 300 seconds since it could not be sent.

D [05/Aug/2011:23:27:44 +0900] [Job 79] End of messages

D [05/Aug/2011:23:27:44 +0900] [Job 79] printer-state=3(idle)

D [05/Aug/2011:23:27:44 +0900] [Job 79] printer-state-message="この電話番号は話し中でした。"

D [05/Aug/2011:23:27:44 +0900] [Job 79] printer-state-reasons=none

希望的観測としては，送れなかったときのログをみて何かわかったら，

USB Modem を初期化するコマンドを変更することです．（ただ，私は，

USB Modemを初期化するコマンドをどうやって変更するかは，現時点ではわかりません．)

さきほどの発言に補足でです．

FAXが送れなかった時のログを，

電話番号をかくして，このコミュニティに投稿してくださると，

みんなで問題が解決できるかもしれません．，

D [05/Aug/2011:23:27:44 +0900] [Job 79] fax sending file /private/var/spool/cups/tmp/00b064e40c9fc to T*2

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[8] = T*2

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 dialing T*2

D [05/Aug/2011:23:27:44 +0900] [Job 79] *2 にダイヤル中...

D [05/Aug/2011:23:27:44 +0900] [Job 79] Set job-printer-state-message to "*2 にダイヤル中...", current level=INFO

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "DT*2"

↓

D [05/Aug/2011:23:27:44 +0900] [Job 79] fax sending file /private/var/spool/cups/tmp/00b064e40c9fc to TXXXXXXXXX

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax args[8] = TXXXXXXXXX

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 dialing TXXXXXXXXX

D [05/Aug/2011:23:27:44 +0900] [Job 79] XXXXXXXXX にダイヤル中...

D [05/Aug/2011:23:27:44 +0900] [Job 79] Set job-printer-state-message to "XXXXXXXXX にダイヤル中...", current level=INFO

D [05/Aug/2011:23:27:44 +0900] [Job 79] efax: 27:38 command "DTXXXXXXXXX"

電話番号があらゆる場所にでてきますので，ログを投稿される場合は，お気をつけ下さい．

Apple USB Modem：よくお問い合わせいただくご質問 (FAQ)

重要：Apple USB モデムは OS X Lion 以降ではサポートされません。

ありがとうございます

もうここら辺になると私にはチンプンカンプンです(^-^;A

教わった通りにログをコピーして掲載します、よろしくお願いいたします

後、先の書き込みで私が書いたFaxDocumentというソフトは、単体でFax送信をするものではなく、Faxサービスにメール送信する類いのもののようです、勇み足でした、申し訳ありません

マーカー - 2011/08/07 17:33:32

E [07/Aug/2011:17:35:06 +0900] [Job 866] ファクスプロトコルのエラーが起こりました。

D [07/Aug/2011:17:35:06 +0900] [Job 866] The following messages were recorded from 17:34:32 to 17:35:06

D [07/Aug/2011:17:35:06 +0900] [Job 866] Adding start banner page "none".

D [07/Aug/2011:17:35:06 +0900] [Job 866] Queued on "USB_Modem" by "yokkatu".

D [07/Aug/2011:17:35:06 +0900] [Job 866] Auto-typing file...

D [07/Aug/2011:17:35:06 +0900] [Job 866] Request file type is application/pdf.

D [07/Aug/2011:17:35:06 +0900] [Job 866] File of type application/pdf queued by "yokkatu".

D [07/Aug/2011:17:35:06 +0900] [Job 866] Adding end banner page "none".

D [07/Aug/2011:17:35:06 +0900] [Job 866] job-sheets=none,none

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[0]="USB_Modem"

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[1]="866"

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[2]="yokkatu"

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[3]="＠＠＠＠＠、＠＠＠＠＠"

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[4]="1"

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[5]="AP_ColorMatchingMode=AP_ApplicationColorMatching AP_D_InputSlot= nocollate com.apple.print.DocumentTicket.PMSpoolFormat=application/pdf com.apple.print.JobInfo.PMApplicationName=Safari com.apple.print.JobInfo.PMJobName=＠＠＠＠＠、＠＠＠＠＠ com.apple.print.JobInfo.PMJobOwner=＠＠＠\ ＠＠ com.apple.print.PageToPaperMappingAllowScalingUp..b. com.apple.print.PageToPaperMappingMediaName=A4 com.apple.print.PageToPaperMappingType..n.=1 com.apple.print.PrinterInfo.PMColorDeviceID..n.=4369 com.apple.print.PrintSettings.PMColorSpaceModel..n.=1 com.apple.print.PrintSettings.PMColorSyncProfileID..n.=1580 com.apple.print.PrintSettings.PMCopies..n.=1 com.apple.print.PrintSettings.PMCopyCollate..b. com.apple.print.PrintSettings.PMDestinationType..n.=3 com.apple.print.PrintSettings.PMFirstPage..n.=1 com.apple.print.PrintSettings.PMLastPage..n.=2147483647 com.apple.print.PrintSettings.PMPageRange..a.0..n.=1 com.apple.print.PrintSettings.PMPageRange..a.1..n.=2147483647 com.apple.print.PrintSettings.PMTotalBeginPages..n.=2 com.apple.print.PrintSettings.PMTotalSidesImaged..n.=2 DestinationPrinterID=USB_Modem nofaxCoverSheet faxCoverSheetMessage= faxDateLabel=%e6%97%a5%e4%bb%98%ef%bc%9a faxFromLabel=%e9%80%81%e4%bf%a1%e5%85%83%ef%bc%9a faxPrefix= faxSheetsLabel=%e5%be%8c%e7%b6%9a%e3%81%ae%e7%94%a8%e7%b4%99%ef%bc%9a faxSubject= faxSubjectLabel=%e4%bb%b6%e5%90%8d%ef%bc%9a faxTo=デスク\ <(**)\ ****\ ****> faxToLabel=%e5%ae%9b%e5%85%88%ef%bc%9a faxToneDialing faxUseSound faxWaitForDialTone media=A4 PaperInfoIsSuggested..b. phone=%2803%29%20****%20**** printer-resolution=204x98dpi pserrorhandler-requested=standard Resolution=204x98dpi job-uuid=urn:uuid:9de5f5fc-5095-3f65-6dee-f0fd57b3e1ab job-originating-host-name=localhost time-at-creation=1312706072 time-at-processing=1312706072 PageSize=A4"

D [07/Aug/2011:17:35:06 +0900] [Job 866] argv[6]="/private/var/spool/cups/d00866-001"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[0]="<CFProcessPath>"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[1]="CUPS_CACHEDIR=/private/var/spool/cups/cache"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[2]="CUPS_DATADIR=/usr/share/cups"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[3]="CUPS_DOCROOT=/usr/share/doc/cups"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[4]="CUPS_FONTPATH=/usr/share/cups/fonts"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[5]="CUPS_REQUESTROOT=/private/var/spool/cups"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[6]="CUPS_SERVERBIN=/usr/libexec/cups"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[7]="CUPS_SERVERROOT=/private/etc/cups"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[8]="CUPS_STATEDIR=/private/etc/cups"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[9]="HOME=/private/var/spool/cups/tmp"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[10]="PATH=/usr/libexec/cups/filter:/usr/bin:/usr/sbin:/bin:/usr/bin"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[11]="SERVER_ADMIN=root@yokkatu-2.local"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[12]="SOFTWARE=CUPS/1.5.0"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[13]="TMPDIR=/private/var/spool/cups/tmp"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[14]="USER=root"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[15]="CUPS_SERVER=/private/var/run/cupsd"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[16]="CUPS_ENCRYPTION=IfRequested"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[17]="IPP_PORT=631"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[18]="CHARSET=utf-8"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[19]="LANG=ja.UTF-8"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[20]="APPLE_LANGUAGE=ja"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[21]="PPD=/private/etc/cups/ppd/USB_Modem.ppd"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[22]="RIP_MAX_CACHE=128m"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[23]="CONTENT_TYPE=application/pdf"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[24]="DEVICE_URI=fax://dev/cu.usbmodem24680241"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[25]="PRINTER_INFO=USB Modem"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[26]="PRINTER_LOCATION=＠＠＠ ＠＠ のコンピュータ"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[27]="PRINTER=USB_Modem"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[28]="PRINTER_STATE_REASONS=none"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[29]="CUPS_FILETYPE=document"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[30]="FINAL_CONTENT_TYPE=printer/USB_Modem"

D [07/Aug/2011:17:35:06 +0900] [Job 866] envp[31]="AUTH_I****"

D [07/Aug/2011:17:35:06 +0900] [Job 866] Started filter /usr/libexec/cups/filter/cgpdftoraster (PID 11152)

D [07/Aug/2011:17:35:06 +0900] [Job 866] Started filter /usr/libexec/cups/filter/rastertotiff (PID 11153)

D [07/Aug/2011:17:35:06 +0900] [Job 866] Started backend /usr/libexec/cups/backend/fax (PID 11154)

D [07/Aug/2011:17:35:06 +0900] [Job 866] ファクスを準備中...

D [07/Aug/2011:17:35:06 +0900] [Job 866] Set job-printer-state-message to "ファクスを準備中...", current level=INFO

D [07/Aug/2011:17:35:06 +0900] [Job 866] `/private/var/spool/cups/d00866-001' has 2 pages.

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster - opened PPD file "/private/etc/cups/ppd/USB_Modem.ppd"...

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster: size->width = 595, size->length = 842, size->top = 825.16, size->bottom = 16.84, size->left = 16.84, size->right = 578.16

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster: PreferredRotation = 90

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster - languageLevel = 3, mediaBox.size.width = 595, mediaBox.size.height = 842

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster: band width = 1590, bytesPerRow = 1590, band height = 1100, height = 1100

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster: context width = 1590, height = 1100, bitsPerComponent = 8, bitsPerPixel = 8, bytesPerRow = 1590, bitmapInfo = 0, resolution = (204.000000, 98.000000)

D [07/Aug/2011:17:35:06 +0900] [Job 866] NOT using display list

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster: bytes written for sheet 1 = 218900

D [07/Aug/2011:17:35:06 +0900] [Job 866] rastertotiff read page 1 (218900 bytes)

D [07/Aug/2011:17:35:06 +0900] [Job 866] cgpdftoraster: bytes written for sheet 2 = 218900

D [07/Aug/2011:17:35:06 +0900] [Job 866] rastertotiff read page 2 (218900 bytes)

D [07/Aug/2011:17:35:06 +0900] [Job 866] STATE: -offline-report

D [07/Aug/2011:17:35:06 +0900] [Job 866] STATE: +connecting-to-device

D [07/Aug/2011:17:35:06 +0900] [Job 866] fax sending file /private/var/spool/cups/tmp/02b924e4b565c to T(**) **** ****

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[0] = efax

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[1] = -d/dev/cu.usbmodem24680241

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[2] = -vewincf

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[3] = -iZ

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[4] = -i

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[5] = E0&D2S7=120M1X4

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[6] = -oh

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[7] = -l

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[8] = 0488810286

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[9] = -t

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[10] = T(**) **** ****

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax args[11] = /private/var/spool/cups/tmp/02b924e4b565c

D [07/Aug/2011:17:35:06 +0900] [Job 866] Started /usr/bin/efax (PID 11158)

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax v 0.9a-001114 Copyright 1999 Ed Casas. Compiled Jun 13 2011 16:41:35

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: Sun Aug 7 17:34:34 2011 TIFF version 4.2 file (big-endian)

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 TIFF directory at 51706 with 16 tags, next directory at 55922.

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 page 1 : /private/var/spool/cups/tmp/02b924e4b565c + 8 : 1590x1100 @ 204x98 dpi TIFF/FAX

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 TIFF directory at 55922 with 16 tags, last image.

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 page 2 : /private/var/spool/cups/tmp/02b924e4b565c + 51933 : 1590x1100 @ 204x98 dpi TIFF/FAX

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 opened /dev/cu.usbmodem24680241

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 command "Q0V1"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 waiting 2.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:34 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "Z"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "E0&D2S7=120M1X4"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "ATE0&D2S7=120M1X4"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 initializing modem

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "E0"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "I3"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "CX93001-EIS_V0.2002-V92"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "+FCLASS=?"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "0,1,1.0,8"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "+FCLASS=1"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 using CX93001-EIS_V0.2002-V92 in class 1

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "+FTM=?"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "3,24,48,72,73,74,96,97,98,121,122,145,146"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "+FAR=1"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 response "ERROR"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 dialing T(**) **** ****

D [07/Aug/2011:17:35:06 +0900] [Job 866] (**)**** ****にダイヤル中...

D [07/Aug/2011:17:35:06 +0900] [Job 866] Set job-printer-state-message to "(**)**** ****にダイヤル中...", current level=INFO

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 command "DT(**) **** ****"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:35 waiting 120.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:50 response "CONNECT"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:50 connected

D [07/Aug/2011:17:35:06 +0900] [Job 866] STATE: -connecting-to-device

D [07/Aug/2011:17:35:06 +0900] [Job 866] (**)**** ****に接続しました。

D [07/Aug/2011:17:35:06 +0900] [Job 866] Set job-printer-state-message to "(**)**** ****に接続しました。", current level=INFO

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:53 Error: timed out reading frame data

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:53 received UNKNOWN

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:53 command "+FRH=3"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:53 waiting 32.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:53 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:56 Error: timed out reading frame data

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:56 received UNKNOWN

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:56 command "+FRH=3"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:56 waiting 26.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:56 response "CONNECT"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:59 Error: timed out reading frame data

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:59 received UNKNOWN

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:59 command "+FRH=3"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:59 waiting 17.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 34:59 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:02 Error: timed out reading frame data

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:02 received UNKNOWN

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:02 command "+FRH=3"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:02 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:03 response "CONNECT"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 Error: timed out reading frame data

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 received UNKNOWN

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 Error: no answer from remote fax

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 command "H"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 failed -> /private/var/spool/cups/tmp/02b924e4b565c

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 failed -> /private/var/spool/cups/tmp/02b924e4b565c

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 command "Q0V1"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 waiting 2.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 command "H"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 waiting 5.0 s

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 response "OK"

D [07/Aug/2011:17:35:06 +0900] [Job 866] efax: 35:06 done, returning 3 (invalid modem response)

D [07/Aug/2011:17:35:06 +0900] [Job 866] Set job-printer-state-message to "ファクスプロトコルのエラーが起こりました。", current level=ERROR

D [07/Aug/2011:17:35:06 +0900] [Job 866] Backend returned status 1 (failed)

D [07/Aug/2011:17:35:06 +0900] [Job 866] Job held for 300 seconds since it could not be sent.

D [07/Aug/2011:17:35:06 +0900] [Job 866] End of messages

D [07/Aug/2011:17:35:06 +0900] [Job 866] printer-state=3(idle)

D [07/Aug/2011:17:35:06 +0900] [Job 866] printer-state-message="ファクスプロトコルのエラーが起こりました。"

D [07/Aug/2011:17:35:06 +0900] [Job 866] printer-state-reasons=none

通りすがりのものです。

yokattu 様、お使いのモデムはなにをご利用でしょうか？

こちらは、PL-US56Kというプラネックス社製のモデムを使っています。

不具合は、あるFAX番号に送付すると、たまに送信できないという現象です。

ログは、yokattuさんと若干違います。

taichan様、"超小型 USB接続 56k アナログ回線接続 FAX/DATE(14.4K) モデム "

は、たまに(あるいは相手先によって)送信先にFAXをれなくなるという現象はござ

いますでしょうか？

一応こちらでプログラムを改造したものがあるのですが、yokattuさんの

ところであてはまるかどうかは不明です。

(ご希望であれば、差し上げます。動作が改善されるかは???です。)

相性の良いモデムを選ぶ方が良いかと思います。

以下技術的な話です。

lionのfaxコマンドは、/usr/bin/efaxというものを使っているようです。

どなたか、T.30の規格について詳しい方いらっしゃいますでしょうか？

当方で、received UNKNOWNというメッセージがでる場合は次のような

ケースだということがわかりました。

http://www.opensource.apple.com/source/efax/efax-36/efax/efax.c

当方の不具合は、

frame = buf [ 2 ] & 0x7f ;

のbuf[2]にC0という値が入っておりました。

int getfr ( TFILE *mf, uchar *buf, int getcmd )

{

….

if ( ! err ) {

frlen = fixframe ( buf, frlen, mf ) ;

frame = buf [ 2 ] & 0x7f ;

switch ( frame ) {

case CRP:

err = 1 ;

case NSF:

case NSC:

case NSS:

goto Enter ;

case CIG:

case CSI:

case TSI:

char *frname ( int fr )

{

static struct framenamestruct { int code ; char *name ; }

framenames [] = {

{NSC,"NSC - poller features"}, /* these 3 frames must be first */

{CIG,"CIG - poller ID"},

{DTC,"DTC - poller capabilities"},

{NSF,"NSF - answering features"},

{CSI,"CSI - answering ID"},

{DIS,"DIS - answering capabilities"},

{NSS,"NSS - caller features"},

{TSI,"TSI - caller ID"},

{DCS,"DCS - session format"},

{CFR,"CFR - channel OK"},

{FTT,"FTT - channel not OK"},

{MPS,"MPS - not done"},

{EOM,"EOM - not done, new format"},

{EOP,"EOP - done"},

{PRI_MPS,"PRI-MPS - not done, call operator"},

{PRI_EOM,"PRI-EOM - not done, new format, call operator"},

{PRI_EOP,"PRI-EOP - done, call operator"},

{MCF,"MCF - page OK"},

{RTP,"RTP - page OK, check channel"},

{PIP,"PIP - page OK, call operator"},

{RTN,"RTN - page not OK, check channel"},

{PIN,"PIN - page not OK, call operator"},

{CRP,"CRP - repeat command"},

{DCN,"DCN - disconnect"},

{0,0} },

*p ;

for ( p=framenames ; p->code ; p++ )

if ( fr == p->code || ( fr & 0x7f ) == p->code) break ;

return p->code ? p->name : "UNKNOWN" ;

}

hiroysatoさま、ありがとうございます

こちらはConexant_D400を使用していますが、ものは試しでPL-US56Kを注文してみました

（しまいには、デスクの上がモデムだらけになる予感が.....(^-^;A）

手元に届いたら試してみますm(_ _)m

hiroysatoさま、

本日、PL−US５６Kが手元に届きましたので、早速試してみた所

Conexant_D400と同様に送信出来ない所がありました

送れない先が両方のモデムでまったく同じ所だったのでFaxが送れない問題は、モデム固有の問題ではなく

ソフト側の問題ではないかと推察されます

また、送信出来ない先がFax／電話兼用機による手動切り替えのように思えます

（すべてを確認した訳ではありませんが）

改造されたプログラムというのは、私のようななド素人にも扱えますでしょうか？

試してみたいので頂けたら幸いです

＊　個人情報(メールアドレス)を削除いたしました。Apple Inc.

taichanさま、hiroysatoさま、ほか、このコミュの皆様、お騒がせいたしました

その後も、得意先にはFax送信出来ない状況が続いていましたが、

中古iMacG５を入手して、画面共有で繋ぎそちらからFax送信するという力技でしのぐ事にいたしました(^-^;A

いずれ、Fax関連のアップデートがされるか（されるのか？）

PageSenderなどのソフトがLionに対応するか（するのか？）まで、これでいこうか思います

アドバイスありがとうございました、今後ともよろしくお願いいたしますm(_ _)m

yokkaku様，他の皆様

CoMa X という(Lion対応の)FAXソフトウェアがあるようです．関心がありましたら，下記をご覧下さい．

http://hartmann-b.de/CoMa/CoMa_X_en.html

FAXだけでなく，Voice(留守番電話?)などもできるようですが，

対応しているモデムが限定されるので，FAXの機能だけ使えばよいと思います．

Faxの機能だけ(Faxだけのバージョン)だと39ユーロのようです．30日試用できるようです．

試用中は複数ページのFAXは，上書きされてしまうようなので，ご注意ください．

とりあえず一通だけFAXを送りたい(試したい)場合は，

Quick Manual ( http://hartmann-b.de/CoMa/pgs_en/Quick_Manual.html )の

Installation, Basic adjustments,

Send fax pages witch are created with other programs:まで，ご覧になればできると思います．

実は，私も，amazonで売っているConexantのUSBモデムで，

MacOSX(LIon)からFAXを送信できないところ(相手のFAX機)に始めてでくわしました．

(大手運送会社の支店のFAX機でした．ヤマト運輸ではありません．)

このConexantのUSBモデムを使って，この大手運送会社の支店のFAXへ，

Windows 7 (VMWare上のWindows 7)からは送信できたので，

MacOSX(Lion)のFAXソフト(efax)と相性の悪いFAX機があるのだと思います．

Pagesenderの他に何かFAXソフトはないかなあと探していて，CoMa Xを見つけたので

ご参考まで．ドイツの会社の製品みたいですね．

私もMacOSX(LIon)からFAXを送るのに同じくConexantのUSBモデムで使ってます。

送れる書類と送れない書類が有る様です。

アップル社のiWorkのアプリでしたら送れる様です。

因にプレビューは駄目ですね。

プリント選択画面で添付の画像の様に最初の段階で表示される書類だと送れる様な気がします。
